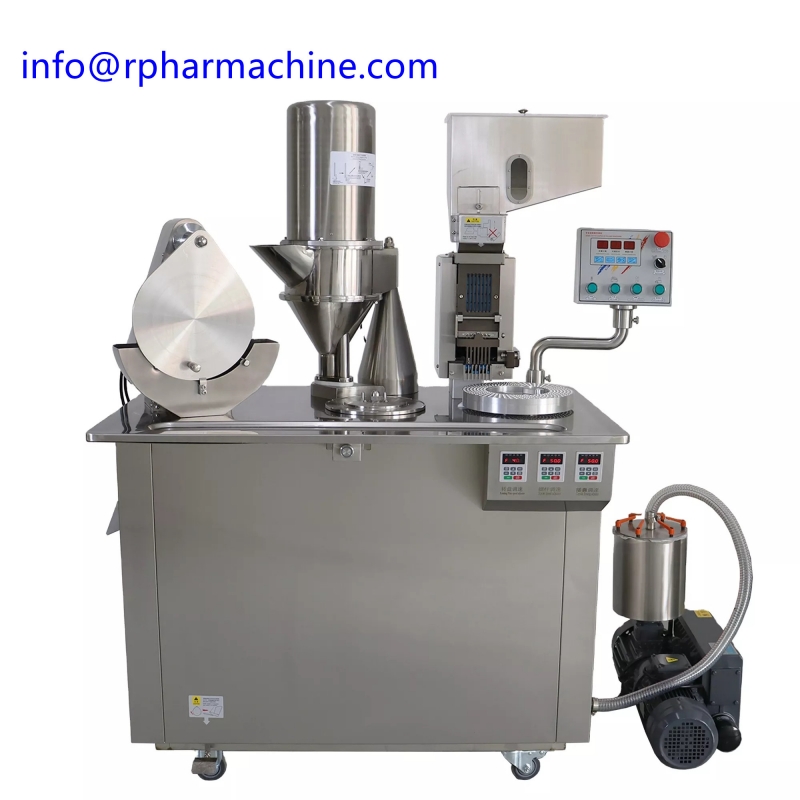

Name:CGN208D Semi automatic capsule filling machine
Delivery Time:15days
Capsule Size:000,00L,00,0,1,2,3,4
Mold Change:5mintues

Product Description

CGN208-D type capsule filling machine is a new efficient equipment based on DTJ-C model (old type) after research and development: easier more intuitive and higher loading in capsule dropping, U-turning, vacuum separation in comparison with the old type. The new type of capsule orientating adopts columns pill positioning design, which shortens the time in the replacement of mould from the original 30 minutes to 5-8 minutes. This machine is one type of electricity and pneumatic combined control, automatic counting electronics, programmable controller and frequency conversion speed regulating device. Instead of manual filling, it reduces labor intensity, which is the ideal equipment for capsule filling for small and medium-sized pharmaceutical companies, pharmaceutical research and development institutions and hospital preparation room.

Easy Change molds only 5mintues for new learner

Product Parameters

Adjust new mould time:

5-8 minutes (for beginner)

Production capacity:

10000-25000 capsules/hour (depends on the capsule   size)

Suitable capsule:

000#,00L#,00#,0L#,0#,1#,2#,3#,4#,5# mechanical made   standard capsule.

Filled material:

Powder (without wet or sticky); granules.

Total power:


Compressed air:

0.03m 3 /min, 0.7Mpa (your side prepare air compressor)

Vacuum pump:

Exhaust 40m 3 /h

Overall dimension:


Packing dimension:


Gross Weight:

420 KGS
