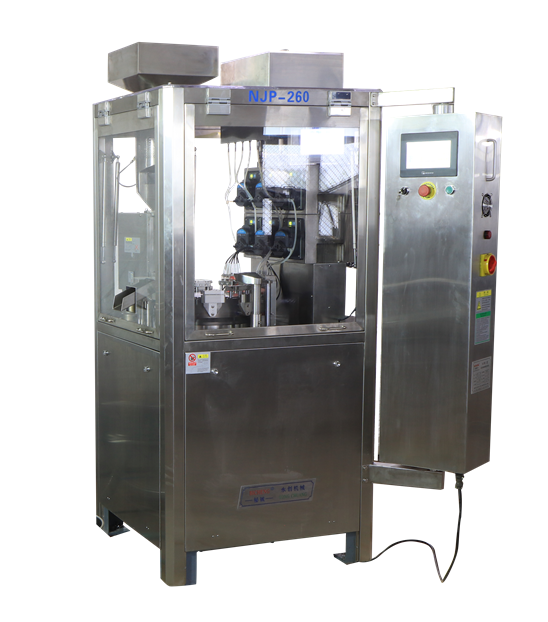

| Name: | NJP130 260 Liquid capsule automatic filling machine |
|---|---|
| capsule: | liquid |
| Inquire |
Product Description
NJP260 filling liquid into capsules with bander machine
Main Technical Parameter of NJP-260 liquid capsule filling machine
Model | NJP-260 Fully automatic liquid capsule filler |
Weight | 900kg |
Dimensions | 1020×860×1970mm |
Power | 5.75kw |
Power supply | 3phase 4 wires AC 380V;50Hz |
Maxi. Capacity | 260 capsules/m |
Capsule specifications | 00#~5# and Safety Capsule A~E |
Capsule feeding rate | ≥99.5% |
noise | ≤75dBA |
Filling precision | Liquid Above 300mg≤±3% |
Compressed air | 0.06m3/min 0.3Mpa |
Water | Recycling water |
Vacuum degree | -0.02~-0.06 MPa |
Water flow | 250L/h |
Intake water diameter | 20mm |
Discharge water diameter | 27mm |
Work environmental temperature | 21℃±3℃ |
Workshop’s height | Manual Feeding≥2.6m, Automatic Feeding≥2.8m |
Related Humidity | 40~55% |
Control system | PLC |
Material | Stainless steel 304 and 316. |
