| Name: | DPP250/260 Automatic Blister packing machine |
|---|---|
| Inquire |
Product Description

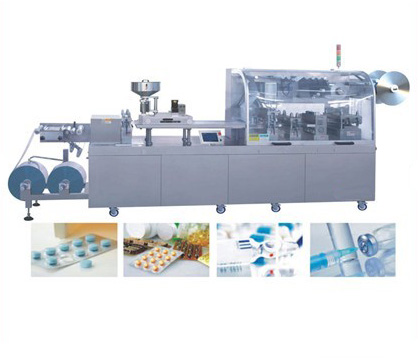

| DPP260 blister packing machine |
| Main technical parametersDevice nameAutomatic packaging machineEquipment modelDPP-260Main technical parametersProduction capacity: 10-25 times per minute Materials and specificationsPaper card: wide 255mm thick 0.05-0.10; medicinal PVC maximum width 260mm thick 0.25-0.35mmAdjustable range35mm - 150mmPackaging efficiency (Depending on the area of the package)major functionStroke adjustable device, mould pressing plate positioning device, opposite plate heating device, servo traction, finished product punching output.Maximum forming depth（mm)25mmMaximum forming area（mm2)245×140×25mmPower specificationThree phase 380V 50Hz-60HzTotal electric power（kW）9.5KWcompressed air pressure（MPa)0.6-0.8MPaCompressed air consumption（m3/h)≥0.8m3/minCooling water consumption（m3/h)Cooling water cooling waterNoise（dB)60-70dBShape size（L×W×Hmm)4500×800×1650mmWeight（kg)1500kg
|
